Thermal Transfer Overprinting E30
SKU: 1668669585
PRINT AREA — From 53 mm × 75 mm to 53 mm × 200 mm
RIBBON LENGTH — Up to 800 m
RIBBON WIDTH — From 33 mm to 55 mm
PRINT SPEED — 36 m/min
Thermal Transfer Overprinting E30 – A Precise Solution for Printing Production Dates and Batch Codes
The Thermal Transfer Overprinting (TTO) printer, also known as a thermal transfer overprinting system, is a specialized printing solution used to mark information such as dates, codes, batch numbers, serial numbers, and other variable data onto product surfaces during the manufacturing or packaging process.
The Thermal Transfer Date Coding Machine E30 utilizes high temperature in thermal transfer overprinting (TTO) technology to transfer information from a thermal transfer ribbon onto the product surface.
- 7-inch color touchscreen display
- Advanced thermal transfer overprinting (TTO) technology ensures high precision and sharp print quality
- RS232, Ethernet, and Wi-Fi communication ports enable flexible input/output configuration and easy system integration
- Powerful controller and data storage system allow fast data processing and quick response to production requirements
Detailed Specifications
Technical Specifications
Applications
Detailed Specifications
Thermal Transfer Date Coding Machine E30 – A Fast, Accurate, and Cost-Efficient Thermal Transfer Overprinting Solution for Industrial Production
The Thermal Transfer Date Coding Machine E30 is an advanced industrial printing system, optimized for medium to large-scale manufacturing enterprises. Utilizing thermal transfer overprinting (TTO – thermal transfer overprinting) technology, the machine enables direct printing of production dates, expiry dates, batch numbers, barcodes, QR codes, brand logos, and other variable data onto a wide range of packaging materials, including plastics, paper, metals, and non-porous surfaces.
As a high-performance thermal transfer overprinting system, the E30 ensures high-speed, precise, and consistent printing performance while minimizing errors and material waste during production.
1. Outstanding Printing Performance
The Thermal Transfer Date Coding Machine E30 is engineered for continuous operation with a printing speed of up to 30 m/min, helping manufacturers increase productivity and meet high-volume printing demands within short timeframes.
Its high speed combined with the precision of thermal transfer overprinting technology ensures that critical information such as expiry dates, batch codes, barcodes, and QR codes remains clear, sharp, and highly readable.
The system supports printing on a wide range of materials, including PVC, PE, PP plastics, kraft paper, aluminum, metal, glass, and other non-porous surfaces, providing flexibility in packaging operations and optimizing material costs.
The E30 is also designed for seamless integration into automated production lines, allowing connectivity with packaging machines, conveyors, labeling systems, and pick-and-place robots—creating a synchronized and efficient production workflow.
2. Easy, Intuitive, and Smart Operation

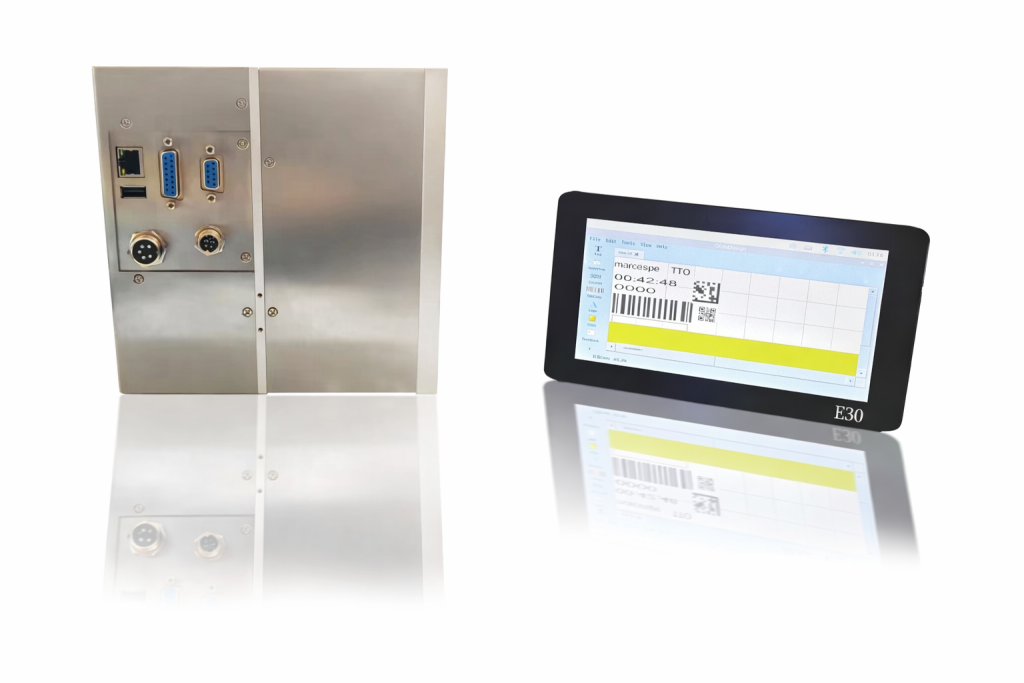

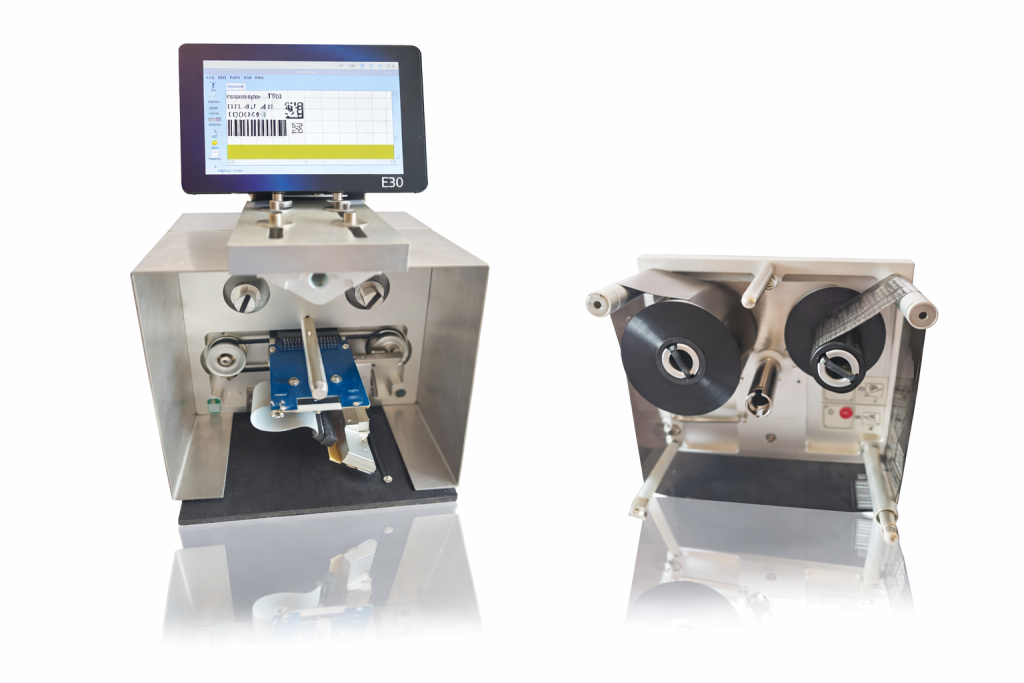

The machine features a 7-inch color touchscreen interface with a user-friendly design, enabling operators to easily configure print parameters, select data formats, control speed, and adjust print intervals.
Equipped with modern communication interfaces such as RS232, Ethernet, and Wi-Fi, the system allows easy programming and integration into automation systems.
The airless printhead design enables automatic alignment and printing without requiring additional tools, improving operational convenience and reducing setup errors.
In addition, the E30 software supports advanced thermal transfer overprinting modes such as:
- Repeat printing mode
- Radial (circumferential) printing
- Equal spacing printing
These features ensure consistent, well-positioned, and professional print layouts, especially on uneven, curved, or textured surfaces, preventing overlapping or distortion.
3. Intelligent and Powerful Software
The thermal transfer overprinting ribbon-saving mode helps reduce consumable usage and operating costs by optimizing ribbon consumption while maintaining print quality. This results in lower ribbon replacement costs and improved overall equipment efficiency.
The radial printing mode in thermal transfer overprinting applications allows direct printing on non-flat or irregular surfaces, including uneven or textured materials.
The equal spacing mode in thermal transfer overprinting ensures that printed information and barcodes are evenly distributed across products, minimizing overlap or distortion and delivering precise, professional results.
4. Flexible Compatibility and Line Integration
The Thermal Transfer Date Coding Machine E30, built on thermal transfer overprinting technology, is designed for high compatibility and easy integration with various industrial systems, enabling fully automated printing and packaging solutions. It can be combined with:
- Horizontal and vertical packaging machines for granules, tablets, powders, and liquids
- Bottle, jar, and pouch labeling machines
- Conveyor systems and pick-and-place robots for closed-loop production lines
- Quality control systems to ensure all products meet printing and packaging standards
This flexible integration capability allows thermal transfer overprinting systems like the E30 to help businesses save time, reduce operational errors, and ensure long-term production efficiency.
Benefits of Using Thermal Transfer Date Coding Machine E30 in Production
The Thermal Transfer Date Coding Machine E30 (TTO – thermal transfer overprinting) is a modern industrial printing solution that helps businesses enhance production efficiency, optimize costs, and ensure packaging quality. As an advanced thermal transfer overprinting system, the E30 delivers multiple key advantages:
1. High-Speed and Accurate Printing
With a printing speed of up to 30 m/min, the Thermal Transfer Date Coding Machine E30 enables rapid printing of critical information such as production dates, expiry dates, batch numbers, barcodes, QR codes, and brand logos on various packaging types.
Leveraging thermal transfer overprinting technology, the system ensures high precision, sharp print quality, and consistent output, eliminating issues such as smudging, ink bleeding, or misalignment—especially in continuous production environments using thermal transfer overprinting.
2. Versatile Material Compatibility
The Thermal Transfer Date Coding Machine E30 supports printing on a wide range of materials, including PE, PP, PVC plastics, kraft paper, metals, glass, alloys, as well as uneven, textured, or irregular surfaces.
This flexibility allows manufacturers to package diverse products—from food and pharmaceuticals to industrial goods—using a single thermal transfer overprinting solution across multiple applications.
3. Cost Savings on Consumables and Operation
The system utilizes thermal transfer overprinting ribbons up to 800 m in length, with widths ranging from 33–55 mm, combined with a thermal transfer overprinting ribbon-saving mode to minimize material consumption and operational costs.
This significantly reduces ribbon usage, replacement frequency, and downtime, making thermal transfer overprinting systems more cost-efficient for long-term production.
4. Seamless Integration into Automated Lines
The Thermal Transfer Date Coding Machine E30, built on thermal transfer overprinting technology, integrates easily with industrial equipment such as packaging machines, conveyor systems, labeling machines, and pick-and-place robots.
This enables businesses to develop fully automated packaging and coding lines, reducing manual intervention, minimizing errors, and maximizing efficiency with thermal transfer overprinting solutions.
5. Advanced Variable Data Printing Capabilities
The system supports a wide range of variable data formats, including:
- Linear barcodes
- 2D codes
- Dates and time formats
- Batch and shift codes
- Images and logos
- QR codes
- Database-driven content
These capabilities ensure compliance with product traceability requirements and standardized packaging information through reliable thermal transfer overprinting technology.
6. User-Friendly and Intuitive Operation
The 7-inch color touchscreen interface provides a clear and intuitive user experience, allowing operators to quickly configure print parameters.
With support for RS232, Ethernet, and Wi-Fi connectivity, the thermal transfer overprinting system can be easily programmed, adjusted, and integrated into existing production lines with minimal training.
7. High Durability and Reliability
Designed to meet industrial-grade standards, the Thermal Transfer Date Coding Machine E30 operates reliably in demanding production environments.
Its non-contact thermal transfer overprinting process reduces mechanical wear on the printhead, extending equipment lifespan, minimizing maintenance, and ensuring stable performance in thermal transfer overprinting applications.
8. Increased Productivity and Standardized Product Quality
With fast, accurate, and consistent printing across various materials, the Thermal Transfer Date Coding Machine E30 helps standardize packaging quality, enhance brand image, and meet export requirements.
By adopting thermal transfer overprinting solutions, businesses can increase production capacity without increasing labor costs, while maintaining consistent and professional packaging output.
CVM Group – Trusted Distributor of Thermal Transfer Overprinting Solutions in Vietnam
CVM Group is a leading provider in Vietnam specializing in the supply and distribution of the Thermal Transfer Date Coding Machine E30 and comprehensive thermal transfer overprinting solutions for manufacturing enterprises.
With extensive experience in industrial printing equipment, CVM Group is committed to delivering genuine products, high quality, and professional after-sales service.
The Thermal Transfer Date Coding Machine E30 distributed by CVM Group is sourced from reputable manufacturers and integrates advanced thermal transfer overprinting technology, enabling precise printing of production dates, expiry dates, barcodes, QR codes, brand logos, and traceability data on various materials such as plastics, paper, metals, and glass.
The system offers stable operation, high-speed performance, cost efficiency, and seamless compatibility with mass production lines utilizing thermal transfer overprinting systems.
In addition to supplying the E30, CVM Group provides integrated thermal transfer overprinting solutions, including:
- Automated packaging machines
- Labeling systems
- Conveyor systems
- Pick-and-place robotic solutions
Customers benefit from consultation, installation, operator training, and scheduled maintenance services, ensuring optimal machine performance and long-term reliability.
With competitive pricing, full CO–CQ documentation, and dedicated technical support, CVM Group is a trusted partner for businesses seeking to enhance productivity, reduce labor costs, and optimize packaging processes with thermal transfer overprinting technology.
Technical Specifications
| Model | E30 |
| Printhead | 32 mm, 300 dpi |
| Print Area | Intermittent: 32 mm × 75 mm Continuous: 32 mm × 200 mm |
| Max Print Speed | Intermittent: 2–30 m/min Continuous: 0.5–36 m/min |
| Print Throughput | Intermittent: 350 prints/min Continuous: 450 prints/min |
| Ribbon Length | Up to 800 m |
| Ribbon Width | 22–33 mm |
| Printing Capabilities | Date & Time, Variable Data, Images, Table Data, Barcode, QR Code, Serial Data, etc. (thermal transfer overprinting) |
| Supported Barcode Types | Code 128 (GS1), EAN, Code 11, QR Code (GS1), Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, UPC-A, UPC-E, EAN-128, PDF417, DataMatrix (GS1), etc. (thermal transfer overprinting) |
| Controller Display | Touchscreen, hot-plug supported; external display via Wi-Fi / Bluetooth |
| Functions | Controller operation, code transmission printing, multiple control programs with data exchange protocol (thermal transfer overprinting system) |
| Communication Interfaces | RS232, Ethernet, Wi-Fi, Windows-supported data exchange protocol |
| Languages | English, Spanish, Portuguese, French, Arabic, German, Russian, Simplified/Traditional Chinese, etc. |
| Calendar Systems | Gregorian, Persian, Islamic |
| Software Features | Ribbon Saving Mode, Radial Print Mode, Equal Spacing Mode (thermal transfer overprinting) |
| Machine Dimensions | 190 × 180 × 170 mm |
| Machine Weight | 7.5 kg |
| Controller Dimensions | 220 × 120 × 30 mm |
| Controller Weight | N/A |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 200 W |
| Operating Conditions | Temperature: 0–40°C Humidity: 10–90% |
| Air Requirement | N/A |
Applications
The Thermal Transfer Date Coding Machine E30 utilizes advanced (TTO) technology, enabling high-precision printing of text, logos, graphics, barcodes, and QR codes directly onto a wide range of packaging surfaces.
This thermal transfer overprinting system operates reliably even on uneven, curved, or folded surfaces, and is compatible with various materials such as plastic pouches, labels, paper packaging, OPP films, PE films, and thin metals. It delivers fast, sharp, and durable prints that meet the stringent quality standards of modern manufacturing.
The Thermal Transfer Date Coding Machine E30 is widely applied across multiple industries:
- Food & Beverage Industry: Printing expiry dates, production dates, and batch numbers on snack packaging, confectionery, frozen foods, sachets, and flowpack packaging using thermal transfer overprinting.
- Pharmaceuticals & Nutraceuticals: Printing product information, batch codes, and traceability data on pouches, blister packs, cartons, and plastic or glass containers with high accuracy through thermal transfer overprinting technology.
- Cosmetics & Personal Care: Marking logos, product codes, and ingredient information on cartons, plastic packaging, and bottles using reliable thermal transfer overprinting solutions.
- Packaging & Industrial Sector: Printing barcodes, serial numbers, and technical data on paper packaging, cartons, roll films, labels, and other industrial materials via thermal transfer overprinting systems.
With its ability to deliver high-speed printing, consistent quality, and continuous operation, the Thermal Transfer Date Coding Machine E30 helps businesses optimize packaging processes, improve product traceability, ensure data consistency, and reduce labor and operational costs.
This makes it an ideal thermal transfer overprinting solution for medium to large-scale manufacturers, particularly in the food, pharmaceutical, cosmetics, and industrial packaging sectors.
